Download EngiLab Rod.2D - A Powerful Engineering Tool

EngiLab Rod!2D™ is a powerful engineering tool for the linear static analysis of plane (2D) trusses for Windows, using a 2-Degrees of Freedom per node approach. It features a Full GUI (Graphical User Interface) for pre-processing or post-processing and uses the Finite Element Method (FEM) for plane trusses for its analysis needs.



Features

• - Full GUI (Graphical User Interface)
• - Linear static analysis of 2D Trusses
• - 2 DOFs (Degrees Of Freedom) per Node
• - Elastic (Spring) nodes
• - Computation of Node x,y Translations
• - Computation of Element Axial Forces / Stresses / Strains
• - Computation of Constraint Reactions
• - Computation of Spring forces

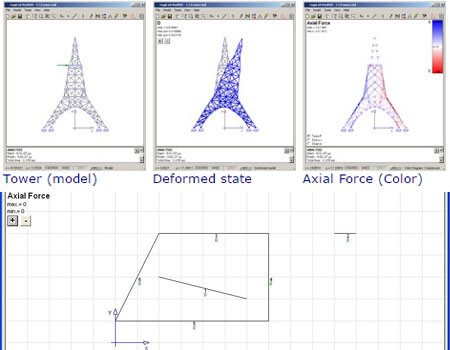

• - Drawing of Deformation
• - [N] Diagrams: Axial Force / Stress / Strain
• - Color Diagrams: Axial Force / Stress / Strain
• - Deformation animation
• - Compatibility with any consistent system of units (Metric/Imperial etc)
• - Export of results tables directly to Microsoft Excel





Download EngiLab Rod.2D - A Powerful Engineering Tool at :

engineering-software.com/pr/sku27685.htm
